Custom Tubular Stranding Machine Steel Electric Wire Cable Making

Basic Information
Place of Origin: Hejian,China
Brand Name: Beyde
Model Number: 630/1+6
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container loading with safety packing
Delivery Time: 70-150 Days after receive deposit
Payment Terms: L/C, T/T
Supply Ability: 120 Set/Year
Color: Customized Warranty:: 12 Months
PLC: Optional Usage: Stranding
Name: Tubular Stranding Machine Application: Steel,aluminium,stranding Steel Wire,ACSR And AAAC,Al Wire
Pay-off: PN500-PN630 Take-up Bobbin Size: PND800-PND1600
Wire Material: Steel,Copper,stainless Steelwire,Aluminum Inverter: INOVANCE
Motor: Siemens
High Light:

custom tubular stranding machine

,

steel electric wire tubular stranding machine

,

tubular strander

Low price steel electric wire cable making tubular stranding machine



1. Description

This tubular stranders line is used for stranding Steel , AL and CU wire ,as well as cabling the control cables.



2. Characteristic

2.1 This tubular stranding body is a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

2.2 Bobbin is clamped by disc springs and released by pneumatic control device.

2.3 Wire break and wire emergent stops provided for all the line

2. 4 The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable.



3. Main Specification



Reel size Max. rotation speed (rpm) Wire dia.
6B 12B 18B 24B AL(mm) CU(mm) Steel(mm)
200(mm) 1200 900     1.0~2.5 0.2~1.5 0.2~0.8
315(mm) 900 800     1.0~2.5 0.5~1.8 0.3~1.0
400(mm) 900 800 550   1.0~2.5 1.4~4.0 0.6~3.0
500(mm) 800 600 450 350 1.3~5.0 1.8~5.0 1.3~3.5
560(mm) 700 500 400 300 1.3~5.0 1.8~5.0 1.3~3.5
630(mm) 700 500 330 260 1.3~5.0 2.0~6.0 1.3~3.5
710(mm) 400 300     1.3~5.0 2.0~6.0 1.3~3.5
760(mm) 350       1.3~5.0 2.0~6.0 1.3~3.5

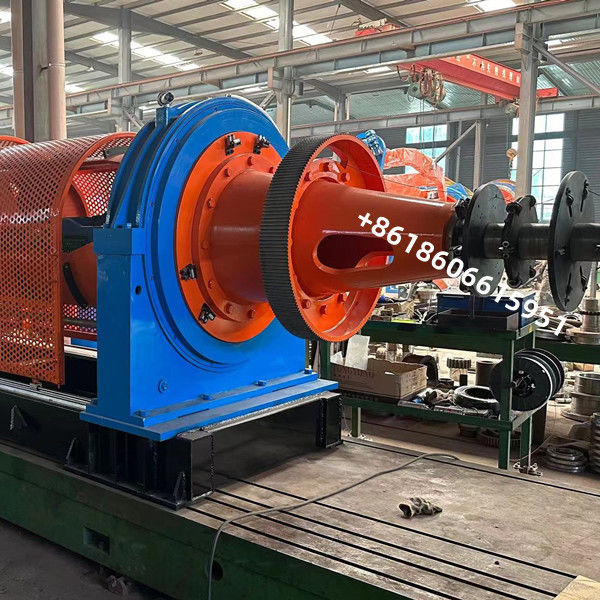

Custom Tubular Stranding Machine Steel Electric Wire Cable Making 0



Custom Tubular Stranding Machine Steel Electric Wire Cable Making 1Custom Tubular Stranding Machine Steel Electric Wire Cable Making 2Custom Tubular Stranding Machine Steel Electric Wire Cable Making 3Custom Tubular Stranding Machine Steel Electric Wire Cable Making 4Custom Tubular Stranding Machine Steel Electric Wire Cable Making 5



Customization:

Customized Cable Stranding Machine by BEYDE

Brand Name: BEYDE

Model Number: JLK630

Place of Origin: China

Certification: ISO,CE

Minimum Order Quantity: 1

Packaging Details: Container safety packing

Delivery Time: 90 days

Payment Terms: 30% Down pay, 70% before delivery

Supply Ability: 200 set/year

Stranding Pitch: stepless adjust

Power Source: Electric

Voltage: 220V/380V

Product Name: Tube Stranding Machine

Keywords: cable rotation machine, cable making machine, wire twisting machine



Support and Services:

Technical Support and Service for Cable Stranding Machine

We provide comprehensive technical support and service for our Cable Stranding Machines. Our team of experienced engineers and technicians are available to provide technical assistance, troubleshooting, and repair services for any of our machines.

We provide our customers with a range of services, including:

  • Regular maintenance
  • Troubleshooting and repair services
  • Technical support and advice
  • Installation and setup
  • Application engineering

Our team is dedicated to providing the highest quality service and support for our products. We are committed to providing our customers with reliable, timely, and cost-effective solutions for all their needs.

Packing and Shipping:

Packaging and Shipping

Cable Stranding Machine is shipped as a single unit, with its parts and components securely packaged and strapped together in either a cardboard box or wooden crate. The product is then placed onto a pallet, wrapped with protective materials, and strapped securely for shipping.

To ensure safe delivery, the entire package is secured with shrink wrap, bubble wrap, and/or foam. Additionally, we use an eco-friendly packing material, such as biodegradable packing peanuts, to fill any voids inside the package.

We also offer customized packaging and shipping services, such as a double-boxing option. Please contact us for more information.
