Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 630 1+6
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 200 set/year
Usage: |
Stranding,Twisting |
Color: |
Customized |
Plc: |
SIEMENS |
Warranty: |
12 Months |
Name: |
Stranding Machine,cable Machine - Skip Type Stranding Machine |
Wire Material: |
Steel,copper,aluminum |
Function: |
Twist Wire |
Aluminum Wire: |
1.6-4.0mm |
Central Pay Off Drum Diameter: |
630 |
Rotor Speed: |
1000rpm |
Motor: |
SIEMENS |
Motor Power: |
55KW |
Main Motor: |
37 |
Max After Stranding Diameter: |
40 |
Max Line Speed: |
300(M/MIN) |
Application: |
Wire Stranding |
Usage: |
Stranding,Twisting |
Color: |
Customized |
Plc: |
SIEMENS |
Warranty: |
12 Months |
Name: |
Stranding Machine,cable Machine - Skip Type Stranding Machine |
Wire Material: |
Steel,copper,aluminum |
Function: |
Twist Wire |
Aluminum Wire: |
1.6-4.0mm |
Central Pay Off Drum Diameter: |
630 |
Rotor Speed: |
1000rpm |
Motor: |
SIEMENS |
Motor Power: |
55KW |
Main Motor: |
37 |
Max After Stranding Diameter: |
40 |
Max Line Speed: |
300(M/MIN) |
Application: |
Wire Stranding |

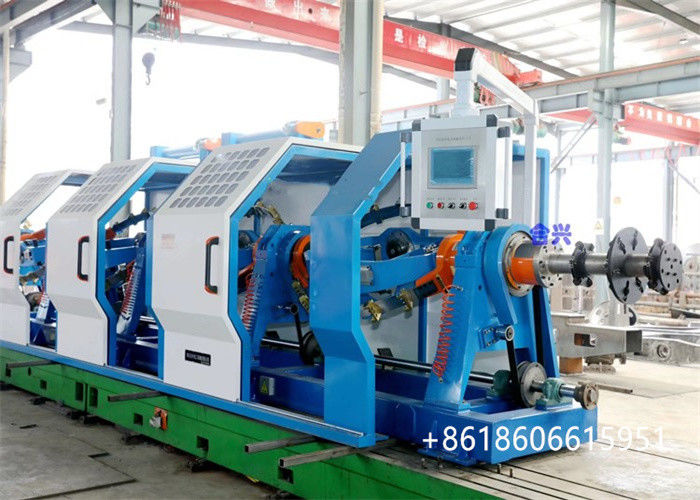

Skip Strander Machines Wire Cable With Carbon Bow 1000 RPM Rotating Speed
The machine is used for stranding copper wire, aluminum wire and steel wire and wire rope,like ACSR,AAC.
| Name | Unit | Data |
| Single wire diameter | mm | Copper wire Φ1.5-Φ4.5 Aluminum wire Φ1.8-Φ5.0 Steel wire Φ1.8-Φ4.0 |
| The maximum strand diameter | mm | Φ16 |
| Max rotation speed of the tube | rpm | 1000 |
| Stranding pitch | mm | 49.3-372.7mm ( 36 stage ) |
| Diameter of draught wheels | mm | Φ1200×Φ1200 |
| Main motor power( AC variable frequency speed regulation ) | kw | 37 |
| The specifications of the bobbin | / | d1: 630 mm L1: 475 mm d4: 127 mm |
| Take-up bobbin | / | PN630-PN1600 |
