Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 500/630
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: |
Stranding,Twisting |
Name: |
Rigid Frame Stranded Machine,Amazing Quality Wire Cable Stranding Bunching Twisting Machine |
Color: |
Customer Requirement,As Customer Request |
Warranty: |
12 Months |
Power: |
110kw |
Function: |
Stranding Wires |
Application: |
Making Cable |
Dimension: |
4200x1120x1450mm |
Product Name: |
Rigid Frame Stranding Machine |
Wire Material: |
Steel,copper,aluminum |
Speed: |
250rpm |
PLC: |
Siemens |
Usage: |
Stranding,Twisting |
Name: |
Rigid Frame Stranded Machine,Amazing Quality Wire Cable Stranding Bunching Twisting Machine |
Color: |
Customer Requirement,As Customer Request |
Warranty: |
12 Months |
Power: |
110kw |
Function: |
Stranding Wires |
Application: |
Making Cable |
Dimension: |
4200x1120x1450mm |
Product Name: |
Rigid Frame Stranding Machine |
Wire Material: |
Steel,copper,aluminum |
Speed: |
250rpm |
PLC: |
Siemens |

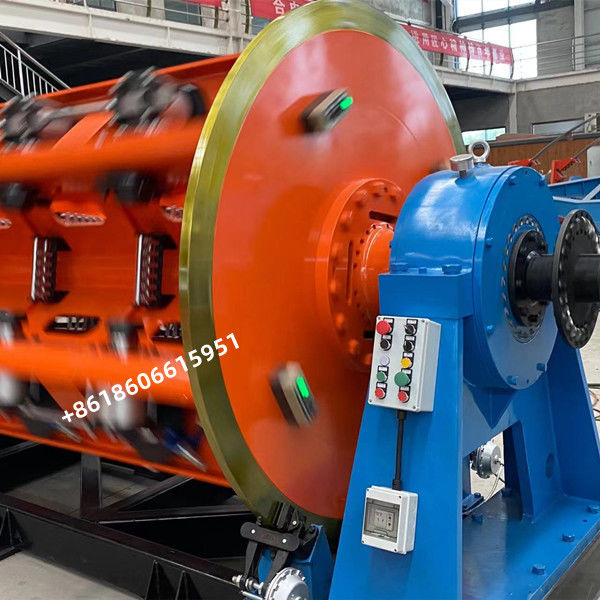

Cable Machine High Rotating Speed Stranding Machine CE Certificate Rigid Stranding Machine
1. Application
This machine is used for stranding and compacting of copper, aluminum and aluminum alloy conductors of round and sector shapes. And it is used for stranding pre-spiral wires and milliken conductor. It is also used for steel wire armoring of power cable.
2. Type
- Transmission by separate motor / ground shaft.
- Bobbin loading by integral side-bottom loading / manual single loading
- Assemble body structure / Welding body structure
- Bobbin clamping by pneumatic / motorized
3. Main Technical Specification
| Type | JLK-500 (Ground shaft) (Welding structure) |
JLK-630 (Separate motor) (Assemble structure) |
JLK-760 (Separate motor) (Assemble structure) |
|
| Single conductor dia. | Cu | 1.5~5.0mm | 1.5~5.0mm | 1.5~5.0mm |
| Al | 1.8~5.0mm | 1.8~5.0mm | 1.8~5.0mm | |
| Al alloy | 1.5~5.0mm | 1.5~5.0mm | 1.5~5.0mm | |
| Steel | 0.9~3.2mm | 0.9~3.2mm | 0.9~3.2mm | |
| Max. rotating speed | 6B | 190r/min | 240r/min | 210r/min |
| 12B | 190r/min | 220r/min | 190r/min | |
| 18B | 170r/min | 200r/min | 170r/min | |
| 24B | 150r/min | 180r/min | 150r/min | |
| 30B | 130r/min | 160r/min | 130r/min | |
| Motor power | 6B | 132KW | 90KW | 110KW |
| 12B | 90KW | 110KW | ||
| 18B | 90KW | 110KW | ||
| 24B | 90KW | 110KW | ||
| 30B | 90KW | 110KW | ||
| Max. working linear speed | 40m/min | 40m/min | 40m/min | |
| Pay off bobbin in cage | PND500 | PND630 | PND760 |
|
Beyde Trading Co., Ltd. was established in 1983. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, BEYDE Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Beyde Trading Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
