Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: PD2500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 120 days
Supply Ability: 200 set/year
Usage: |
Twisting,laying Up |
Color: |
Decided By User |
Name: |
2500bobbin Drum Twister |
Application: |
Armouring And Laying Big Cable |
Warranty: |
12 Months |
Voltage: |
380V |
With 96pcs Steel Wire Armoring(kn): |
5000 |
Maximum Linear Speed(rpm): |
50 |
Material: |
Steel,insulated Wire |
Plc: |
SIEMENS |
Taping Pitch(mm): |
Step-less |
Central Pay Off Drum Diameter: |
2500 |
Motor: |
Siemens |
Max After Stranding Diameter: |
150(mm) |
Usage: |
Twisting,laying Up |
Color: |
Decided By User |
Name: |
2500bobbin Drum Twister |
Application: |
Armouring And Laying Big Cable |
Warranty: |
12 Months |
Voltage: |
380V |
With 96pcs Steel Wire Armoring(kn): |
5000 |
Maximum Linear Speed(rpm): |
50 |
Material: |
Steel,insulated Wire |
Plc: |
SIEMENS |
Taping Pitch(mm): |
Step-less |
Central Pay Off Drum Diameter: |
2500 |
Motor: |
Siemens |
Max After Stranding Diameter: |
150(mm) |

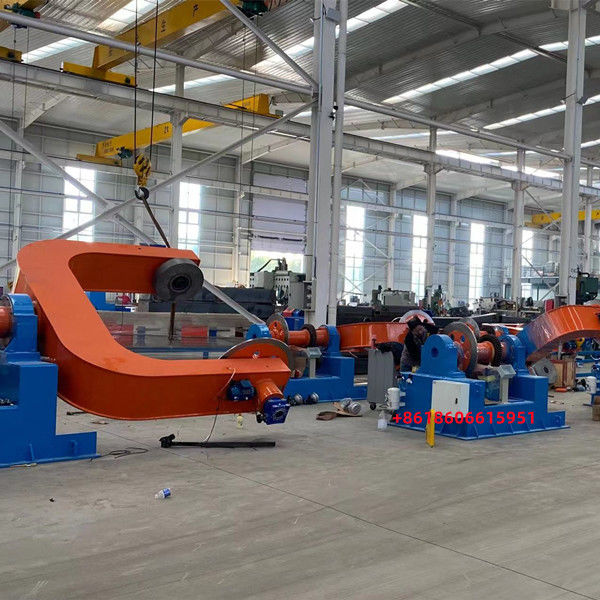

BEYDE 2500 Drum Twister With Steel Wire Armouring Drum Twister For Sale
1. Description
2.Technical Parameters
| Model | 3150 | 3600 | ||||
| Pay Off Reel Φ | 1250 | 1600 | 1600 | 1600 | 2000 | 2500 |
| Rotating Caterpillar Tread | 1000 | 1000 | 1500 | 1500 | 3000/5000 | 3000/5000 |
| Take-Up Drum Φ | 1600 | 2000 | 2250 | 2600 | 3150 | 3600 |
| Armoring Wires | 48 | 60 | 72 | 84 | 96 | 96 |
| Finished Cable Φ | 50 | 60 | 80 | 100 | 130 | 130 |
| Rotor Speed | 140 | 110 | 90 | 70 | 40 |
40 |
BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China.
BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products.
BEYDE was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With maturetechnological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines.
