Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 3600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Safety container packing
Delivery Time: 90 days
Payment Terms: L/C, T/T
Twisting Pitch: |
500-5000mm |
Warranty: |
1 Year |
Voltage: |
3phase 380V 50HZ |
Cat Pneumatic Traction: |
TQD4000 |
Power Supply: |
220V/380V |
Armoring Head Speed: |
650r/min |
Cage Rotate Speed: |
44 |
Other Name: |
Wire Cable Machine |
Pay Off: |
Fork Type |
Central Height: |
1000 Mm |
Application: |
Armouring And Laying Big Cable |
Power: |
75kW |
Drvien: |
Independent Motor |
Cabling OD: |
20-120 Mm |
Twisting Pitch: |
500-5000mm |
Warranty: |
1 Year |
Voltage: |
3phase 380V 50HZ |
Cat Pneumatic Traction: |
TQD4000 |
Power Supply: |
220V/380V |
Armoring Head Speed: |
650r/min |
Cage Rotate Speed: |
44 |
Other Name: |
Wire Cable Machine |
Pay Off: |
Fork Type |
Central Height: |
1000 Mm |
Application: |
Armouring And Laying Big Cable |
Power: |
75kW |
Drvien: |
Independent Motor |
Cabling OD: |
20-120 Mm |

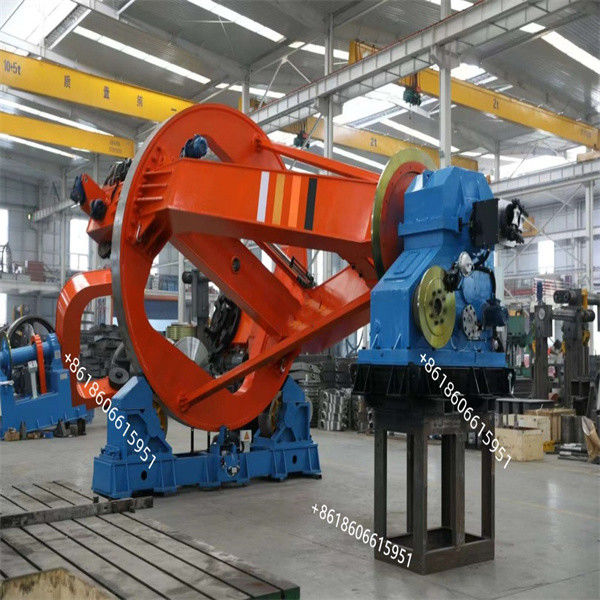

Customizable Drum Twister Machine for Round and Sector Shape Conductors
Drum twister machine is used forcablingaluminium medium and low voltage power cables for round and sector shape conductor with automatic system to ajust the position of the conductors in the laying up process.
Components:
Rotative pay off-5 pcs.
Strand block/sector sensing/correcting unit - 1 pcs
Dies holder system: - 1 pcs
Non-metal taping device - 1 pcs.
Rotative caterpillar - 1 pcs.
Rotative take up - 1 pcs.
Drum twister Technical specifications:
1. Single Conductor diameter: 6÷ 35 mm
2. Cable maxim diameter: 80 mm
5. Lay range: 250 mm to 2000 mm
6. Direction of lay: S or Z
Pay off Technical specifications:
Ground/inground pay off sistems with lifts for load/unload the drums.
1. Type of pay off: Rotative
2. Number of pay off’s: 5
3. Max. diameter of pay off: 2000 mm
Take up Technical specifications:
Ground/ingroundtake up sistems with lifts for load/unload the drums.
1. Type of pay off: Rotative
2. Maxim diameter of take up: 2500 mm
Take up Reels dimensions:
- Flange diameter: 2500 mm
- Barrel diameter: 1500 mm
- Overall length: 1750 mm
Non-metal taping device specifications:
1. Maxim number of tapes: 2 pcs
2. Tape width: 20 ÷ 60 mm.
3. Maxim diameter of tape rolls: 800 mm.
| Conductor shape | Round and sector |
| Stranding conductor section | 16mm2 to 300mm2 |
| Max laying OD | Ø20- Ø100mm |
| Laying pitch range | 200-5000mm |
| Pay-off rotation speed | 50r/min |
| Drum take-up rotation speed | 50r/min |
| Rotation caterpillar speed | 50m/min |
| Max haul-off force | 5000kg |
| Non-metallic taping unit max rotation speed | 650r/min |
| Taping unit pitch | 0-200mm(Step-less adjustable) |
| Metallic taping unit max rotation speed | 550r/min |
| Metallic taping unit pitch | 0-200mm(Step-less adjustable) |
| Rotating Pay-off bobbin size | PN1250-PN1600 |
| Rotating Pay-off bobbin size | PN2000-PN2500 |
| Drum type Take-up bobbin size | PN2000-PN2500 |
| Filling rope pay-off specification | Ø400* 22*360mm (20 pcs) |
| Ø630* 52*475mm (4 pcs) | |
| Steel wire armoring pay-off bobbin size | Ø500 |
| Ø1600 Rotating Pay-off Motor power | 15 KW(AC motor) |
| Ø2500 Rotating Pay-off Motor power | 22 KW(AC motor) |
| Taping unit Motor power | 11KW(AC motor) |
| Rotation caterpillar motor power | 18.5kw*2 (AC v motor) |
| Drum type Take-up motor power | 45KW(AC motor) |
