Product Details
Place of Origin: China
Brand Name: Beyde
Model Number: 630/1+18
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Safety container packing
Delivery Time: 90 days
Payment Terms: 30% as downpay, the balance before delivery
Supply Ability: 200 set/year
Usage: |
Twisting/Screening |
Name: |
Rigid Type Screening Machine |
Color: |
Customer Requirement |
Warranty: |
24 Months |
Voltage: |
380v/50hz |
Application: |
Armored Wire |
Wire Material: |
Copper |
Wire Range: |
0.4mm-5mm |
Stranding Pitch: |
Stepless On Touch Screen |
Speed: |
140rpm |
Take-up: |
PN1600-3150 |
Taping: |
Concentric Type |
Usage: |
Twisting/Screening |
Name: |
Rigid Type Screening Machine |
Color: |
Customer Requirement |
Warranty: |
24 Months |
Voltage: |
380v/50hz |
Application: |
Armored Wire |
Wire Material: |
Copper |
Wire Range: |
0.4mm-5mm |
Stranding Pitch: |
Stepless On Touch Screen |
Speed: |
140rpm |
Take-up: |
PN1600-3150 |
Taping: |
Concentric Type |

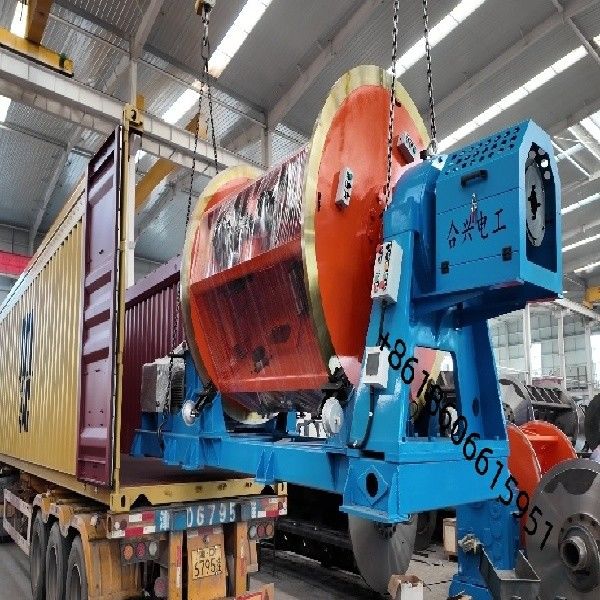

Amored Cable Screening Machine JLK630/1+18 With Long Time Warranty
This machine is mainly used to copper wire shielding.
Overview of equipment composition
The equipment is composed of PLC program control+touch screen+variable frequency speed control+pneumatic control. The synchronous performance deviation of the equipment from startup, normal operation, slow shutdown, emergency stop and other states shall not exceed 3% to ensure stable stranding. The electric control system is advanced, easy to operate and reliable
| Input wire diameter | Ø 0.6－2.0mm(2-4 wire/ bobbin) |
| Max stranding OD | Ø60mm |
| Max rotation speed | 80r/min(Cu) |
| Strand cage motor power | 55KW(AC) |
| Strand pitch(set one PLC) | 300-1500mm (stepless adjustable) Customer provice |
| Traction line speed | 61m/min max |
| Capstan motor power | 45KW(AC) |
| Pay-off reel size in cage | PND630 |
| Max Capstan force | Ø 2500kg |
| Central pay-off reel size | PN1600-PN2800 |
| Take-up bobbin reel size | PN1600-PN2800 |
| Machine center high | 1000mm |
2800mm Portal type Pay-off rack
# guide line rack
18 bobbins strand cage
18 bobbin Concentrated loading bobbin device
Pre-forming head (Integrated with host)
Close die holder
Mechanic digital Meter counter
2500kg Powerful pneumatic caterpillar
2800mm portal type take-up device
Electric control cabinet
Safety protection fence and cover
Electric control system:
The power supply: three-phase, five wire system: 380V (± 10%) 60Hz
The machine adopts separate motor drive (the motor adopts variable-frequency motor), each AC variable-frequency motor adopts frequency converter to control speed regulation, the whole machine control is managed by Siemens programmable controller, the Siemens touch screen controls operation, and the host is started after the alarm bell rings.
Frequency converter fault alarm.
Overload protection and power supply protection of winding and arranging lines.
Air press lack protection.
Break wire protection
Equipped with Ethernet interface for data uploading.
| Bearing brand | (Harbin,.) |
| Low voltage appliance brand | (Chint) |
| Brand of pneumatic component | (AIRTAC) |
| Brand of main drive motor | (Jianghuai Lu’an) |
| Frequency conversion controller | (Inovance) |
| Touch screen | (Siemens KT P1200) |
| PLC | (Siemens S7-200 Smart) |
