Product Details
Place of Origin: China
Brand Name: Beyde
Certification: CE
Model Number: 800/1+4
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Safety container packing
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 set/year
Usage: |
Stranding |
Name: |
Stranding Machiner |
Color: |
Customer Requirement |
Warranty: |
12 Months |
Wire Range: |
4mm-20mm |
Stranding Pitch: |
Stepless Adjust On PLC |
Speed: |
200r/min |
Power Supply: |
380-480V |
Total Length: |
42m |
Wire Material: |
ABC Insulation Wire |
Motor: |
Siemens |
Usage: |
Stranding |
Name: |
Stranding Machiner |
Color: |
Customer Requirement |
Warranty: |
12 Months |
Wire Range: |
4mm-20mm |
Stranding Pitch: |
Stepless Adjust On PLC |
Speed: |
200r/min |
Power Supply: |
380-480V |
Total Length: |
42m |
Wire Material: |
ABC Insulation Wire |
Motor: |
Siemens |

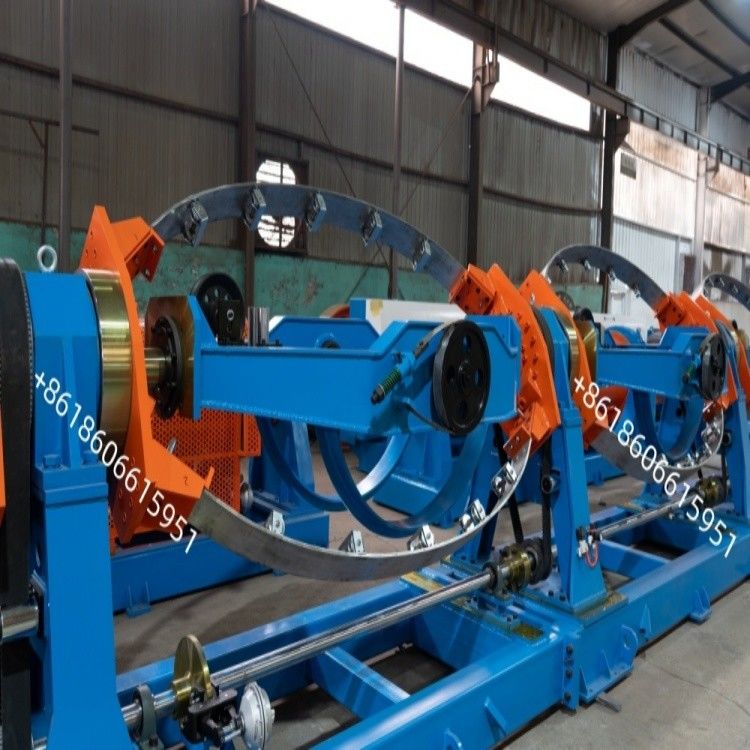

Versatile Applications Bow Stranding Machine Copper Or Aluminum Strands, And Even ACSR
Introduction
Are you looking for a reliable and efficient solution for wire and cable stranding? Look no further than the Skip Stranding Machine. Designed for high-speed and precise stranding operations, this machine is perfect for industries that require top-notch cable manufacturing.
What is a Skip Stranding Machine?
A Skip Stranding Machine is a specialized piece of equipment used to twist multiple wires together into a single conductor. It is particularly known for its ability to handle various materials like copper, aluminum, and galvanized steel wires. The unique structure of this machine ensures natural formation and high-speed rotation, making it ideal for producing high-quality cables
| Input single wire diameter | Ø5.0- Ø12mm |
| Max pass wire hole diameter | Ø16mm |
| Max stranding diameter | Ø30mm |
| Cage max rotation speed | 220r/min |
| Linear speed range | 245m/min |
| Stranding pitch | 200-1500mm(stepless adjust on PLC) |
| Capstan wheel diameter | Ø1200mm (Double wheel) |
| Pay-off bobbin size in cage | PN800 |
| Take-up bobbin size | PN800-PN1250 |
| Center Pay-off bobbin size | PN800 |
| Main motor power | 45KW(AC variable frequency motor) |
| Capstan haul-off motor power | 22kw(AC variable frequency motor) |
| Take-up motor power | 5.5kw(AC variable frequency motor) |
| Stranding direction | S or Z |
| Machine center high | 1000mm |
Why Choose Our Skip Stranding Machine?
Proven Quality: Our machines have been tested and trusted by clients worldwide, with many reporting over three years of trouble-free operation.
Customer Satisfaction: Positive feedback from clients like Mr. Sam and Ms. Liana highlights the machine's reliability and efficiency.
Customization and Support: We offer customized solutions and excellent after-sales service to ensure your production process runs smoothly.
| Model | Single Wire Diameter (mm) | Maximum Stranding Diameter (mm) | Stranding Pitch (mm) | Maximum Rotation Speed (r/min) | Reel Specification (mm) | Main Motor Power (kW) |
|---|---|---|---|---|---|---|
| 500/1+6 | 1.0-3.0 | 12-16 | 40-250 | 800 | PN500-PN800 | 15 |
| 630/1+6 | 1.0-4.0 | 16-20 | 40-350 | 800 | PN630-PN800 | 18.5 |
| 800/1+6 | 1.0-5.0 | 16-24 | 40-400 | 800 | PN800-PN1200 | 22 |
| 1000/1+6 | 1.5-6.0 | 24-30 | 40-450 | 450 | PN1000-PN1600 | 30 |
| 1250/1+6 | 2.0-7.0 | 30-36 | 40-500 | 400 | PN1250-PN2000 | 37 |
| 1600/1+6 | 2.5-9.0 | 36-48 | 40-550 | 350 | PN1600-PN2500 | 45 |
How to Get Started?
Ready to enhance your wire and cable production? Contact us today to learn more about our Skip Stranding Machine and how it can benefit your business. Our team of experts is here to provide you with detailed information and support
| Bearing brand | (HRB) |
| Low voltage appliance brand | (Chint) |
| Brand of pneumatic component | (AIRTAC) |
| Brand of main drive motor | (JIANGHUAI) |
| Frequency converter | (INOVANCE) |
| Touch screen | (SIEMENS) |
| PLC | (SIEMENS) |
