Product Details
Place of Origin: China
Brand Name: Beyde
Certification: CE
Model Number: 560/1+6
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Safety container packing
Delivery Time: 90 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 200 set/year
Shape: |
Tubular Type |
Max Stranding Dia: |
15mm |
Bow Rotation Speed: |
Adjustable |
Automatic Grade: |
Automatic |
Traction Speed: |
13.2~158.4m/Min |
Material: |
Steel,Al,Cu |
Wire Tension: |
Mechanic Or Pneumatic |
Bobbins: |
500-630 Etc |
Machine Central Height: |
1000mm |
Cage Speed: |
650rpm |
Guarantee Time: |
One Year Warranty |
Stranding Direction: |
Left Or Right |
Shape: |
Tubular Type |
Max Stranding Dia: |
15mm |
Bow Rotation Speed: |
Adjustable |
Automatic Grade: |
Automatic |
Traction Speed: |
13.2~158.4m/Min |
Material: |
Steel,Al,Cu |
Wire Tension: |
Mechanic Or Pneumatic |
Bobbins: |
500-630 Etc |
Machine Central Height: |
1000mm |
Cage Speed: |
650rpm |
Guarantee Time: |
One Year Warranty |
Stranding Direction: |
Left Or Right |

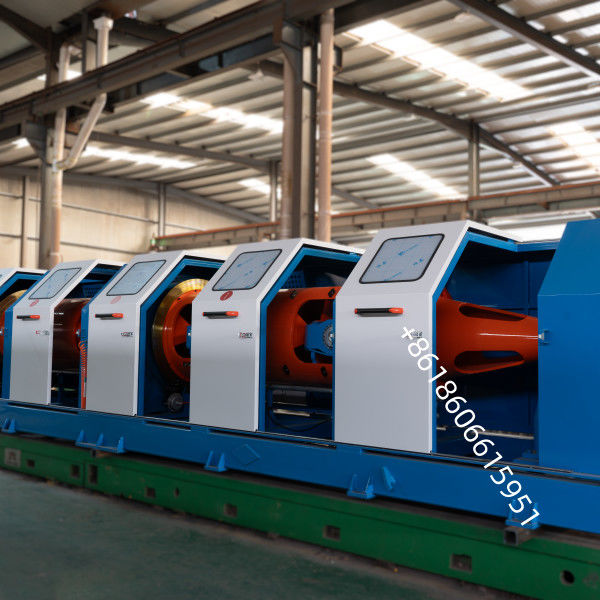

Tubular Strander Line JG-560/1+6 Precision, Speedand Durability in One Machine
| Single wire diameter |
Ø 1.5mm- Ø 5.0mm for Cu Ø 1.8mm- Ø 5.0mm for Al Ø 0.8mm- Ø 3.5mm for St |
| Through line hole diameter | Ø 15mm |
| Strand pitch range | 40 -350mm (stepless adjustable) |
| Cage max rotation speed | 500r/min |
| capstan line speed range | 115m/min |
| capstan wheel diameter | Ø1000+ Ø1000mm |
| Pay-off bobbin size in cage | PND560 |
| Take-up bobbin size | PN800-1600 |
| Center Pay-off bobbin size | PND500-PND630 |
| Main motor power | 37KW |
| Capstan motor power | 15KW |
| Take-up motor power | 4.0KW |
Key Features
High-Speed Stranding: Delivers exceptional productivity with speeds up to 1,500 RPM.
Precision Control: Advanced tension control and lay length adjustment ensure consistent and accurate stranding.
Versatility: Compatible with a wide range of conductor materials, including copper, aluminum, and alloys.
Durable Construction: Built with high-strength steel and anti-corrosion coating for long-lasting performance.
User-Friendly Design: Intuitive touchscreen controls and easy setup for seamless operation.
| Ø630 center pay-off rack | 1 set |
| 6 bobbins strand cage | 1 set |
| Closing wire die holder | 1 set |
| Front side straightener | 1 set |
| Mechanic and Electronic Meter counter | 1 set |
| Ø1000+ Ø1000 Double wheel capstan device | 1 set |
| Ø1600 End shaft take-up and traverse rack | 1 set |
| Electrical control system | 1 set |
| Safety protection cover | 1 set |
Why Choose the Tubular Strander Line?
The Tubular Strander Line combines cutting-edge technology, robust construction, and user-friendly features to deliver unmatched performance in cable stranding. Whether you’re producing power cables, communication cables, or automotive wiring, this machine ensures precision, efficiency, and reliability in every operation.
